BIM: A Disruptive Innovation in AEC

Introduction

The emanation of Building Information Modeling mirrors the transformational capacity and influence it has on the Architecture, Engineering and Construction (AEC) sector. BIM has become an emanating high-tech and measurable alteration in the AEC sector, where some have regarded it disruptive, but has also led other organizations and governmental department to rethink (Azhar, 2011). BIM being an expansive technological impacting several specialist organizations and diffuse more slowly that the local innovations. Therefore, studies have been undertaken to examine the ratification of BIM and its implementation in various project phases as well as nations and offering information for correlative inquiry. Therefore, the intensifying suggestions of if BIM supplicate the call for for structures, documentation, protocols and standards that influence ability, fosters endorsement, and heighten coherence of application of BIM within the Department of Infrastructure of Northern Ireland of which as a Project Management Consultant am supposed to advice for the procurement of a contemporary project.

Building Information Modeling (BIM)

Azhar (2011) identifies that Building Information Modeling (BIM) has a method of developing and administering three dimensional (3D) structures at the time of its construction. While BIM is a complex with multiple phases of process, they collect information and other inputs from various stakeholders of the model to develop elements and instrument that must be applied at the time of development procedure to develop an extraordinary outlook of the development procedure. The purpose of the 3D method is to attain reserves via association as well as imaginativeness of construction elements into an antecedent architectural procedure likely to edict adjustment as well as alterations to the real building procedure. It is quite a compelling instrument that when applied effectively will extricate funds, time as well as make the building process easy.

Hjelseth (2017) identifies that in Architecture, Engineering and Construction (AEC) organizations, specifically the Department for Infrastructure of North Ireland that deals with schemes of road improvement, roads and rivers procurement, transport initiative, public transport, waterways, sewerage services and several others. The department collaborates with other bodies such as trafficwatch North Ireland, North Ireland Water, Londonderry Port and Harbour Commissioners, Waterways Ireland, Translink, Belfast Harbour Commissioners, Warrenpoint Harbor Authority and Northern Ireland Drainage Council in facilitation of its deliver of development and management of various infrastructures are met and offer the essential services in an efficient manner possible. Within this department, BIM must be integrated, documented and provide essential protocols and standards vital in ensuring they are developed and meet their required services. Azhar (2011) identifies that there exist a challenge of utilizing BIM effectively and introducing professionalism in the department that deals with the mentioned collaborative bodies of Ireland in fostering efficient service delivery within the sector. Therefore, the focus is on how the Department of Infrastructure of North Ireland can strategically rely and develop a relevant and frame worked BIM, by looking at its documentation, protocols, standards and BIM lifecycles that are relied up on in United Kingdom.

Application of BIM in Northern Ireland Government Construction Projects

Within the projects that are undertaken in the Infrastructure Department of Ireland under the BIM, they were first documented and developed in the year 2017 as identified by Comiskey et al. (2016). It was about time that Northern Ireland had noticed the importance of digitalization to modern construction and engineering capabilities, after the emergence of BIM in United Kingdom (UK) that offered focus on the industry within the same period of time. The documentation demonstrates the Northern Ireland’s BIM programme in the Infrastructure Department that is well underway and in several respect is a mature as any other country within the development world when it comes to BIM proficiency and diffusion. Before the exertion of BIM, Centers of Procurement Expertise (CoPEs) in North Ireland and within the Infrastructure Department, Comiskey et al. (2016) claim that BIM needs a essential fluctuation in the basic routine administration for building of schemes. The old architectural procedures basically created several of the scheme data at a time of the comprehension architecture as well as bid preparations phases. In case of adjustment in these designs data at the time these phases can lead to optimal effect towards the expense of adjustment within the scheme. Another part of the process of management is the existence of Integrated Project Delivery (IPD). According to Jones (2014), it is regarded the maximum transfer means as it focuses on minimizing misuse and incapability by asking for all stakeholders within a scheme to endeavor collectively in mitigating architectural and building remonstrance’s specifically in the early phases. Thence, integration of BIM is vital as it promotes the results of all procurement paths.

By application of a MacLeamy Curve, Stump and Mihevc (2020) identify that its intention is to shift the design efforts forward in the project, or rather frontloading it so that it minimizes the cost of design adjustments. Hence by integration of BIM, the aim is to maximize production of information as an preceding phases in the architectural procedures, therefore, minimizing the effect of adjustment on expsense. IPD standards in this case, must be consistent with the number of procurement routes.. Below is the Macleamy curve that shows how, the application of IPD, BIM focuses at maximizing construction data at an prior phases in the architectural procedure;

A BIM Task Group and North Ireland BIM Hub

The United Kingdom government is supposed to set up a BIM task team that shares a responsibility of assist in delivering the objectives of North Ireland Department of Infrastructure Construction Strategy, as well as bolster the civic precinct’s capacity in application of BIM. Comiskey et al. (2016) researches that previous task groups of BIM had searched and promoted the role of BIM in attaining advancements in financial worth, expense and attainment via the application of open-shareable assets data. Eadie et al. (2013) identifies that it is by collaborating with Britain centered Construction innovation hubs that bring together world-class expertise from the Manufacturing Technology Center (MTC) and Center for Digital Built Britain (CDBB) meant to transform the UK construction industry. The themes the construction innovation hub work around are value, manufacture, assurance and digital, to innovate the manner in which infrastructures are and buildings are designed, manufactured, integrated and linked within the built environment. Costin et al. (2018) argues that the aim of innovation hub is to research ways to catalyze for adjustment, whereby collaboration is driven towards development, commercializing and fostering digital and manufacturing technologies for the construction of infrastructure and construction sector, that must be smarter, greener and extra efficient in a faster and less expensive as time goes by. The same research that is undertaken, Edirisinghe and London (2015) depict that it is supposedly meant to aid in comprehension of how the infrastructures that the North Ireland Department of Infrastructure can engage into towards adjusting in terms of skills, product standards, capacity and innovation. McDonald and Donohoe (2013) researches that it therefore need the same department to collude with education department of North Ireland in designing academic program to develop the security-minded structures and guidelines, which will underpin the posterity digital surrounding and advance exports for United Kingdom aptitude. North Ireland BIM task force is supposed to bring in experts from all over UK construction sector. The Regional BIM leadership as well as the advocacy across the UK is fostered via Construction Industry Council (CIC) BIM Regional teams that are evened up with the BIM Task Group researches Comiskey et al. (2016). In Northern Ireland, the BIM areas Northern Ireland Governing Team is made up of Northern Ireland architectural sector commissioners as well as the clients from the government of Northern Ireland.

Digitalization Plan of Work

Since the Department of Infrastructure of Northern Ireland (NI) partly constitute traditional work practices, Eadie et al. (2013) studies that the BIM task team will foster production of Digital Plan of Work to be applied on all BIM projects, The CIC scope of Services Work Stages set up back in 2012 as well as the Royal Institute of British Architects (RIBA) plan of work deduced back in 2013 will have to be subsequently aligned with the digital plan of work. According to Dawood and Vukovic (2015), the contemporary plan of work unites and standardizes stages of work and field of study roles across the types of projects the Department engages into as well as the routes of procurement. Below is previous depiction of the year between 2007 and 2013 showing the process of digital plan of work and alignment;

BIM Standard Documentation

The Task group of BIM that will have to consult with the UK construction sector together with the Department of Infrastructure of NI, had created a array of principles that foster the exertion of BIM in construction schemes projects. Holzer (2016) claim that the industry standards are widely recognized and adopted to be applied across all member stages of UK and consequently being adopted in other nations across the globe. Application of the BIM, specifically in civic division construction schemes in NI is focused to affiliate with these principles, specification as well as protocols. Below are the BIM standards as outlined by Stump and Mihevc (2020):

1. BS1192:2007- BIM Collaborative working and structured Information

This is an increasingly viable technique for achieving high caliber and gauges. According to Fai et al. (2011), it prompts reasonable courses of correspondence and sidesteps incidental waste in the exchange of data starting with one gathering then onto the next. One of the models applied is the Common Data Environment (CDE), an online vault for recording, stockpiling, and move of data between all gatherings engaged with the framework venture. As per Lea et al. (2015), the CDE was officially perceived with the production of BS1192:2007 that encouraged its application and offers a structure for the administration of the information. It is clarified in the graphical organization underneath, an imperative need for achieving BIM development:

Once it is applied it will measure and show the naming of documents, naming of layer, and coordination of the undertaking. Appropriation of this by the NI Infrastructure Department will present standard's suggestions all through the development part centers around ingraining data the board division broadly share their data for the advantages of the task, for example, the CIC BIM Protocol will have to offer direction on the use of models in a cooperative encompassing and creates game plans for copyright and intellectual property rights (IPR) by means of the trading of licenses just as possession if the information. Note that the CIC BIM Protocol is a legally binding record intended to be attached to existing agreements for application on BIM ventures.

2. PAS1192-2:2013 (and future revisions) – BIM design and Construction phases

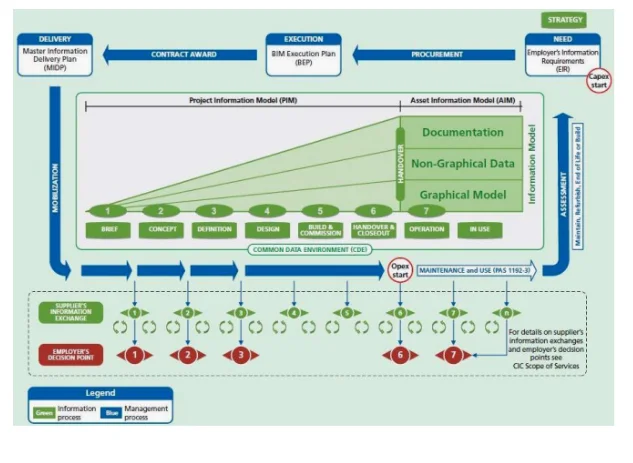

Borrmann et al. (2018) identifies that it is the primary direction archive for BIM conveyance of an advantage during the structure and development stages. It makes upon the edge working of data known as BS1192:2007 and offers direction on venture assessment of need, acquirement, granting of an agreement, group, and creation insight. The PAS1192-2 BIM Delivery Cycle in a diagram will clarify how the costs for the Department's or CoPE's, Integrated Supply Team's (IST), and Integrated Consultant Team's (ICT) administrative. In the graphical portrayal, the blue bolts delineate the procedure of the executives that floods over the data procedure in green. The procedure of data is represented inside the CDE prompting the improvement of the Project Information Model (PIM). The 'As Constructed' PIM, just as its electronically associated knowledge, is offered to the NI Department of endless supply of the undertaking. The fruitful conveyance of the undertaking requires PIM fundamentally assert Borrmann et al. (2018). It is by reason of access to it during a period of activity period of the advantage, indispensable for the Department of Infrastructure of NI in setting up, archiving, and checking the benefit's presentation not forgetting about sustenance expectations. Endless supply of the advantage, the PIM pattern is meant to be the Asset Information Model (AIM). It is also the adoption of ISO 19650 that was created to try to test the UK standards of PAS 1192-2, but specifically entailed adoption of international standards of effective collaboration, that allows contractors to have a clear and efficient information management that would facilitate saving up to 22% in construction costs. Considering all the BIM Level two tasks, resources and offices administration necessities ought to illuminate the vital instructions process with the goal that most extreme achievement of the advantage's life-cycle is placed into thought from the start. As indicated by Khosrowshahi and Arayici (2012), this approach underpins the proposals of the UK Government's Soft Landings (GSL) arrangement. The following is a graphical portrayal of BIM Delivery Cycle:

3. PAS1192-3:2014 (and future revision) – BIM operational phase

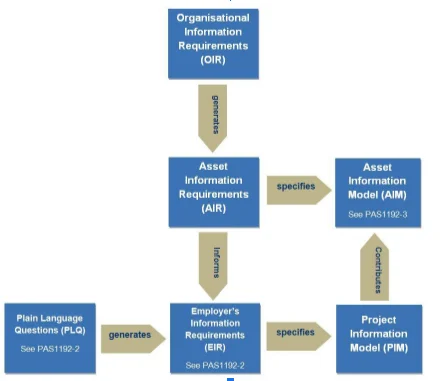

According to a report by Borrmann et al. (2018), this standard documentation offers direction on the administration of the AIM. Upon its selection its will probably concentrate on the period of activity of an advantage, may it have been appointed by means of huge works, got through the transfer of possession, or recently existed in a benefit valise. The period of activity of an advantage is accounted to start at the handover yet the necessities inside the PAS1192-3 would be added to the improvement of data at the hour of structure and development. Thereupon, PAS1192-3 should be respected when building up the EIR. The streaming of data necessities inside an undertaking joining BIM is of explicit basic. The association between the Construction Occupancy Protection Exposure’s (CoPE's) or Department's EIRs and the way they illuminate the AIM are delineated in a graph underneath:

4. BS1192-4:2014 – BIM Information Exchange

This record offers a code of training for the casing working of plunged data in BIM models. The embedded knowledge is called Construction Operations Building data trade (COBie) information. Lavy and Jawadekar (2014) identify that it is imperative that this data is organized into the BIM models to ensure that the knowledge best appropriates the prerequisites of the CoPE or Department of Infrastructure of NI for the task's primary stage assessment and resource administration. Lavy and Jawadekar (2014) explain further that COBie data is essentially communicated in an electronic spreadsheet to offer an edge worked and normalized view of the non-graphical information in the BIM. It very well may be applied to proof of consistency with the EIR and in one of the fundamental yields for the principle stage assessment process. It is imperative to take note of that COBie offers a connection between the computerized plan and development BIM models just as the CoPE's or Department's Computer Aided Maintenance Management System (CAMFM/CAMMS) programming which can in a general sense limit the expense of administering information into these structures when associated to existing manual information passage techniques. Uniclas 2015 has been bolstered by the UK Government just as the development division bodies as the embraced arrangement system for application with BIM. It replaces every single old adaptation of the Uniclass order structure and some other the same frameworks like Construction Index/Samarbetskommitten for Byggnadsfragor (CI/SfB) and Common Arrangement of Work Sections (CAWS).

5. PAS1192-5:2015 (and future version) – BIM security of information

This archive is best practice direction for the administration of information inside a web based encompassing. Adapts or Departments ought to edify themselves with direction since it offers exhortation on guidelines that can be received to ensure that the online administration of their advanced built resources is digital secured identifies Pittard and Sell (2017). It fits with the government guidelines as well as codes of practice on security, but it specifically deals with security-minded approach to creating information modeling, digital built surroundings as well as smart asset management. Therefore, Pittard and Sell (2017) identify the security approaches which entails;

Personnel and physical security in connection to build assets, which are beyond the scope of an ISMS.

The necessity to address safety risks and the long-term usability of created asset data; procedures to minimize the risk of hostile inspection against the developed assets as well as individuals that make use of them.

6. Government Soft Landing (GSL)

It is a significant thought in the transfer of BIM ventures. Smith (2014) explores and finds that the aim of GSL is to encourage better outcomes for Government's built frameworks during the structure and building stages. Its will probably achieve it through BIM to ensure that worth is accomplished in the operational lifecycle of the advantage. Immediately, it focuses to adjust the interests of the architects and fabricate a foundation with the individuals who will utilize it. The following is a stream graph of data prompting the creation of the Pre Contract BIM Execution Plan (BEP):

Further, Walters (2018) identifies Center for Digital Built Britain (CDBB) published a report in 2018 entailing Gemini Principles that are meant to be aligned with the BIM mandate for a mature foundation of mature information management. These principles are effectively enshrined to serve in serving genuine public benefits in perpetuity, create value as well as performance improvement and mist also offer determined insight into the built surrounding. The principles call for a secure, open and high quality data to serve based on standard linked to environment, with clear ownership, governance and regulation and finally must be able to adapt as technology and society evolves.

The BIM Protocol meant to be complied by Department of Infrastructure of NI

The BIM conventions of the UK offer a definite bit by bit or rather conditions to accomplish a goal or convey a quantifiable result of the framework. These are directions found as content or chart groups, in paper or advanced arrangements. As of late, these BIM conventions are assessed as far as their inclusion of the three significant zones, these are; arrangement, innovation, the process just as their intended interest group which is; industry, venture, and undertaking. As indicated by AEC (2015), the convention was first appointed by the Construction Industry Council (CIC) in 2013 as a major aspect of the reaction to the UK Government BIM Strategy. In all states under the UK where to apply these conventions during development gets, that is, contracts for plan and development in regard to foundation or resource, just as support BIM working at level 2. The convention that expected to be embraced in NI especially in the Infrastructure Department of NI sets up specific legally binding commitments on the Department and the venture colleagues in linkage with Specified Information and undertaking data (AEC, 2015). It is intended to set out privileges of the Project Team Members just as the Department of Infrastructure needs to apply that Specified Information just as information not forgetting about the obligation for such application. Thirdly, AEC (2015) portrays that the convention distinguishes the information where individuals from the venture group are expected to apply to yield, as shown in the Responsibility Matrix and the Department's Information Necessities and BIM execution plan. The last thing of the convention is to request consistency with security measures just as procedures.

As indicated by Scully et al. (2012), the improvement of the convention that is broadly applied in the UK and embraced in different countries over the world was first educated by least charges significant that should be made to the previous legally binding mien on development ventures (AEC, 2015). Also, the Department of Infrastructure must cling to a commitment to offer and offer specific data by applying a Common Data Environment process and simultaneously hold fast to the Employer's Information Necessities and BIM Execution plan. Thirdly, the security procedure and systems the Department of Infrastructure of NI sets up must be conformed to by the Project colleagues in the arrangement of their work and administrations. Fourthly, inside the agreement between the Department of Infrastructure of NI and the undertaking group, the convention must be incorporated in order to offer a reliable structure concerning BIM (AEC, 2015). Ultimately, the convention was created to be adaptable and practical to be applied, as releases were created all the while. They were to be applied in all Level 2 BIM ventures, that any type of obtainments embraced, conventional or extra community-oriented, such as cooperating or alliancing. Below is the flow chart of the BIM standards, protocols and documentation in delivery of modern building structures in NI and across UK;

Conclusion

The usage of BIM on ventures by the Department of Infrastructure of Northern Ireland needs the reception of conventions that build up a common vision of the task conveyance process and elevate the consistency of methods and nature of BIM data and deliverable to include partners. The documentation of guidelines and standards, just as conventions, are intended to help the division of framework to take a few to get back some composure with BIM spaces of comprehension, that is, advancements and strategies, improvement of a community-oriented structure and procedures of innovation, procedure, and approach fields just as significant possibility choices focus in flowcharts, charts that give more knowledge. With these key standards of the technique is that the Department of Infrastructure of Northern Ireland will draw in the development organization or group will react to the open door created with advancement and enduring arrangements. The customer will hence react with certain inactivity, and target empowering a solitary voice in the office and be prepared to deal with the consequences of the underlying improvement work streams.

References

Azhar, S. (2011). Building information modeling (BIM): Trends, benefits, risks, and challenges for the AEC industry. Leadership and management in engineering, 11(3), 241-252.

BIM Industry Working Group. (2011). A report for the Government Construction Client Group–Building Information Modelling (BIM) Working Party Strategy Paper March 2011.

Borrmann, A., König, M., Koch, C., & Beetz, J. (2018). Building Information Modeling: Why? What? How?. In Building Information Modeling (pp. 1-24). Springer, Cham.

Comiskey, D., McKane, M., O'Shea, E., Hughes, J., McNiff, S., & Eadie, R. (2016). Collaborative & multidiscipline working-from theory to practice in 48 Hours: A case study from BIM region Northern Ireland. International Journal of 3-D Information Modeling (IJ3DIM), 5(2), 55-71.

Costin, A., Adibfar, A., Hu, H., & Chen, S. S. (2018). Building Information Modeling (BIM) for transportation infrastructure–Literature review, applications, challenges, and recommendations. Automation in Construction, 94, 257-281.

Dawood, N., & Vukovic, V. (2015). Whole lifecycle information flow underpinned by BIM: technology, process, policy and people. In 2nd International Conference on Civil and Building Engineering Informatics.

Eadie, R., Browne, M., Odeyinka, H., McKeown, C., & McNiff, S. (2013). BIM implementation throughout the UK construction project lifecycle: An analysis. Automation in construction, 36, 145-151.

Edirisinghe, R., & London, K. (2015, October). Comparative analysis of international and national level BIM standardization efforts and BIM adoption. In 32nd CIB W78 Conference.

Fai, S., Graham, K., Duckworth, T., Wood, N., & Attar, R. (2011, September). Building information modelling and heritage documentation. In Proceedings of the 23rd International Symposium, International Scientific Committee for Documentation of Cultural Heritage (CIPA), Prague, Czech Republic (pp. 12-16).

Holzer, D. (2016). The BIM manager's handbook: guidance for professionals in architecture, engineering, and construction. John Wiley & Sons.

Jones, B. (2014). Integrated project delivery (IPD) for maximizing design and construction considerations regarding sustainability. Procedia Engineering, 95(1), 528-538.

Kassem, M., Iqbal, N., & Dawood, N. (2013). A Practice-Oriented BIM Framework and Workflows. In Computing in Civil Engineering (2013) (pp. 524-532).

Khosrowshahi, F., & Arayici, Y. (2012). Roadmap for implementation of BIM in the UK construction industry. Engineering, Construction and Architectural Management.

Lea, G., Ganah, A., Goulding, J. S., & Ainsworth, N. (2015). Identification and analysis of UK and US BIM standards to aid collaboration.

McDonald, M., & Donohoe, S. (2013). How are the Educational Institutes of Ireland embracing the paradigm shift towards BIM. Proceedings of CITA BIM Gathering, Dublin, Ireland.

Scully, R., Underwood, J., & Khosrowshahi, F. (2012). Accelerating the implementation of BIM by integrating the developments made in knowledge management: An Irish construction industry perspective. International Journal of 3-D Information Modeling (IJ3DIM), 1(4), 29-39.

Smith, S. (2014). Building information modelling–moving Crossrail, UK, forward. Proceedings of the Institution of Civil Engineers-Management, Procurement and Law, 167(3), 141-151.

Succar, B., Sher, W., & Williams, A. (2012). Measuring BIM performance: Five metrics. Architectural Engineering and Design Management, 8(2), 120-142.
